Axle order request

Axle Order Form

Start with the
right fit.

Enter your measurements to prepare an order request for our team.

Please use our reference sheets below. Required fields are marked with an asterisk (*).

01 / Rear end & carrier

Tell us what the axles will fit.

Rear end * Spline count * Select the actual carrier spline count. Carrier * Vehicle usage *

Spool brand *

Differential type * Differential brand *

02 / Brakes & housing

Exact brake and housing details help us confirm fitment.

Brake setup * Brake make, model & type * Be specific: manufacturer, model, drum/disc, year if applicable. Ex. GT or Cobra brakes.

Aftermarket brake kit part number *

Housing ends * Select the housing end type; do not infer this from bearing size. Retainer plates needed? * This is for an SN95 or S197 Mustang package.

03 / Axle measurements

Use the letters on your axle measurement sheet. All measurements are in inches. Enter positive decimal measurements; convert fractions first.

F — Brake offset * Housing end face to outside face of axle flange. O — Driver side distance * Pinion center to outside of housing flange. L — Passenger side distance * Pinion center to outside of housing flange. A — Brake register diameter * Center register on axle flange. D — Axle flange diameter * This is for a C-Clip Eliminator Kit.

04 / Bolt patterns & hardware

Select your bolt patterns, studs, bearings, and installation options.

Bolt patterns *

4 on 4¼ 5 on 4½ 5 on 4¾ 5 on 5 5 on 5½ 6 on 5½

Choose up to three patterns, or up to two with an access hole. 4 on 4¼ and 6 on 5½ must each be selected alone; an access hole is still available. Ultralight Flange requires one five-lug pattern and cannot be combined with an access hole. Bolt pattern sizes are always in inches.

Studs * Bearings * Install bearings Access hole in flange

Install press-in studs

Ultralight Flange Install the eliminator kit and stud Add reluctor rings

05 / Contact & review

Create your request for review. Final specifications require confirmation.

Full name * Email * Phone * Vehicle / application Additional notes

If you have already placed your order, please enter your order number here.

I have checked my specifications and measurements.

Your selected choices

Selections and entered measurements appear here as you complete the form.

REFERENCE MATERIAL

Axle measurement guides

For reference only. The graphics below are not additional fields to complete. Select a graphic to view it at full size.

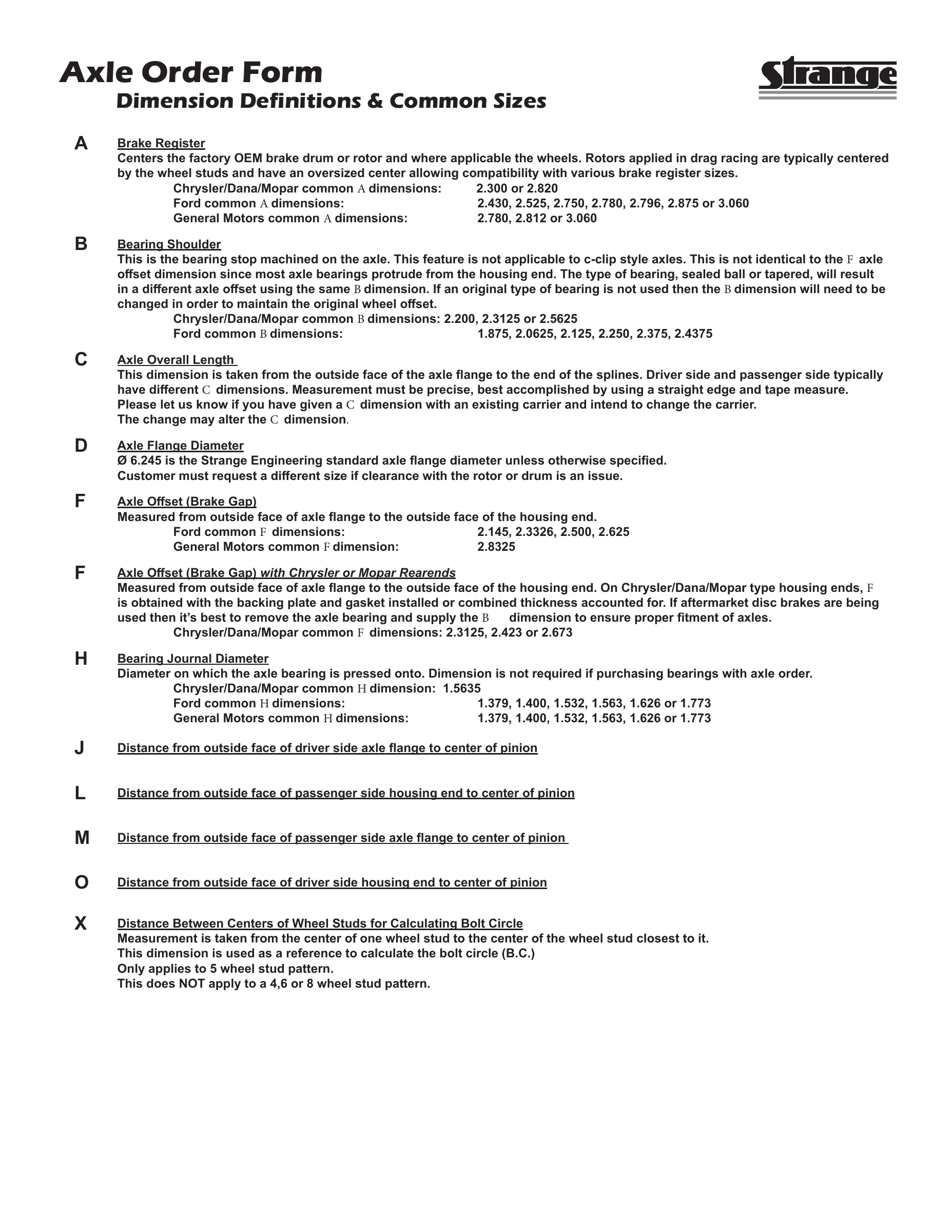

Axle Order Form, page 2: definitions and common dimensions for A, B, C, D, F, H, J, L, M, O and X. — Dimension definitions & common sizes

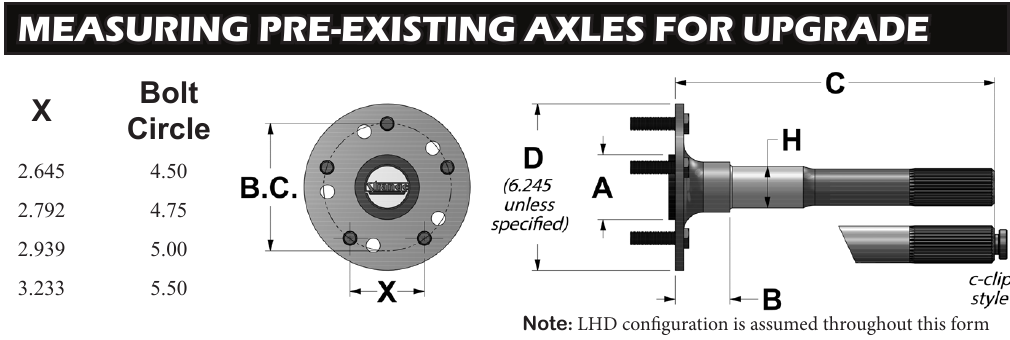

Existing axle measurement diagram showing bolt circle, flange, register, bearing shoulder, journal and axle length dimensions. — Measuring pre-existing axles for upgrade

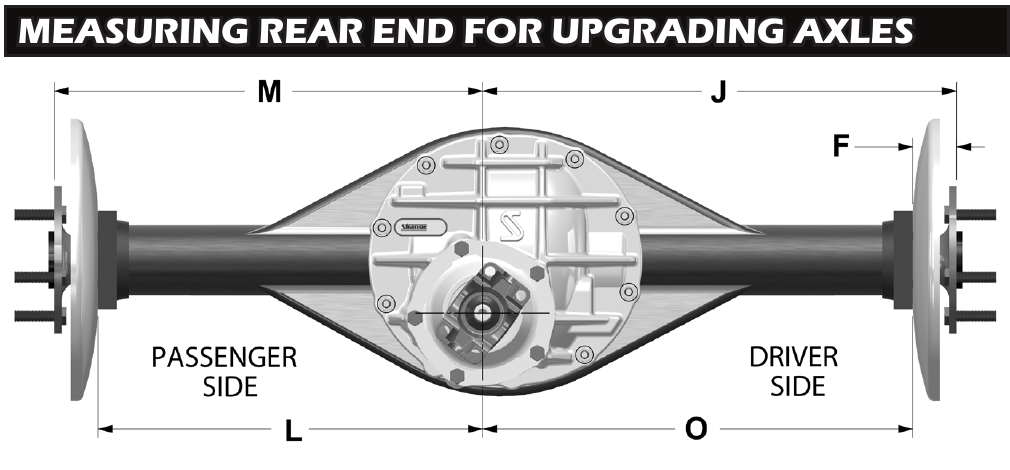

Rear end diagram showing driver and passenger sides, brake offset and distances to pinion center. — Measuring rear end for upgrading axles

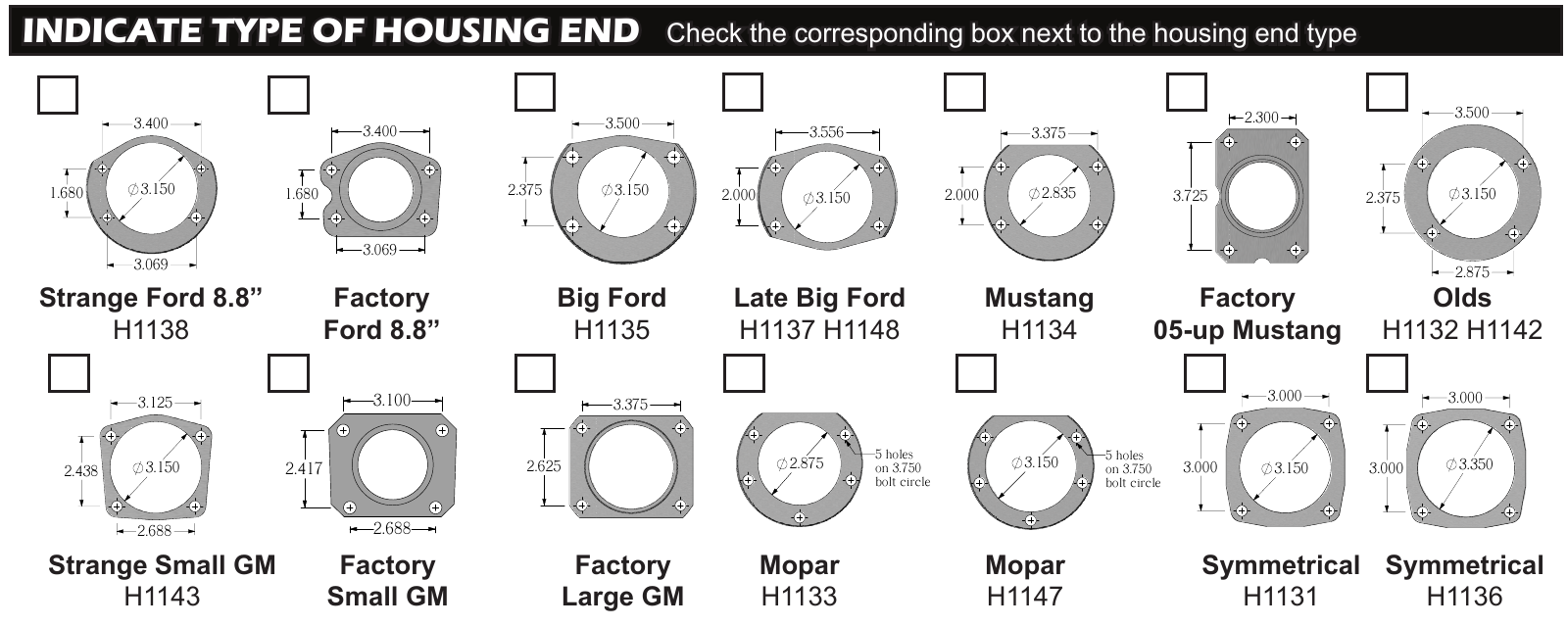

Housing end reference diagrams with mounting dimensions and part numbers for Ford, GM, Mopar, Olds and symmetrical housing ends. — Indicate type of housing end

Axle packets

Wheel stud details, bearing information, and assembly instructions.

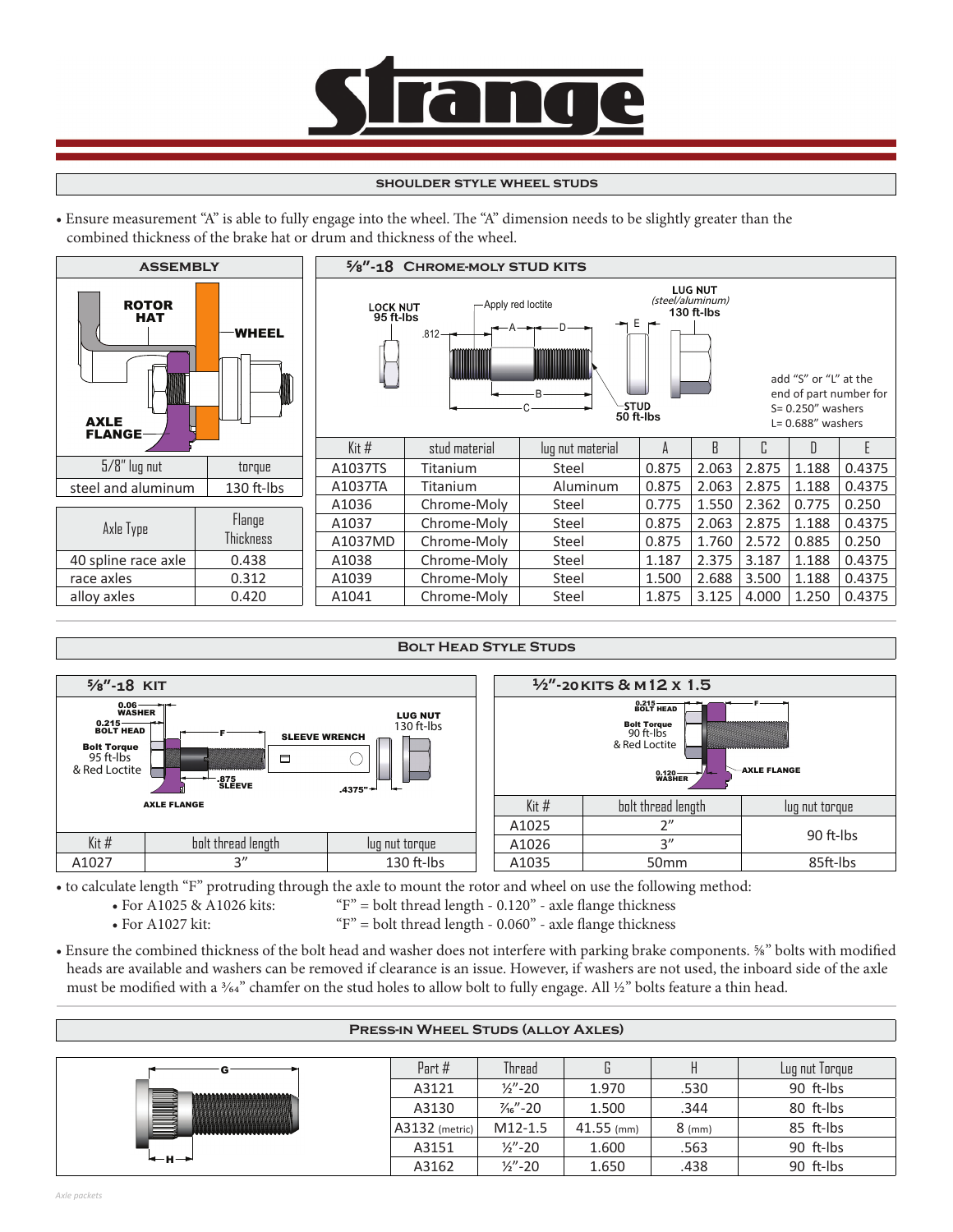

Wheel stud assemblies, stud kit dimensions and wheel stud reference tables. — Axle packets — page 1

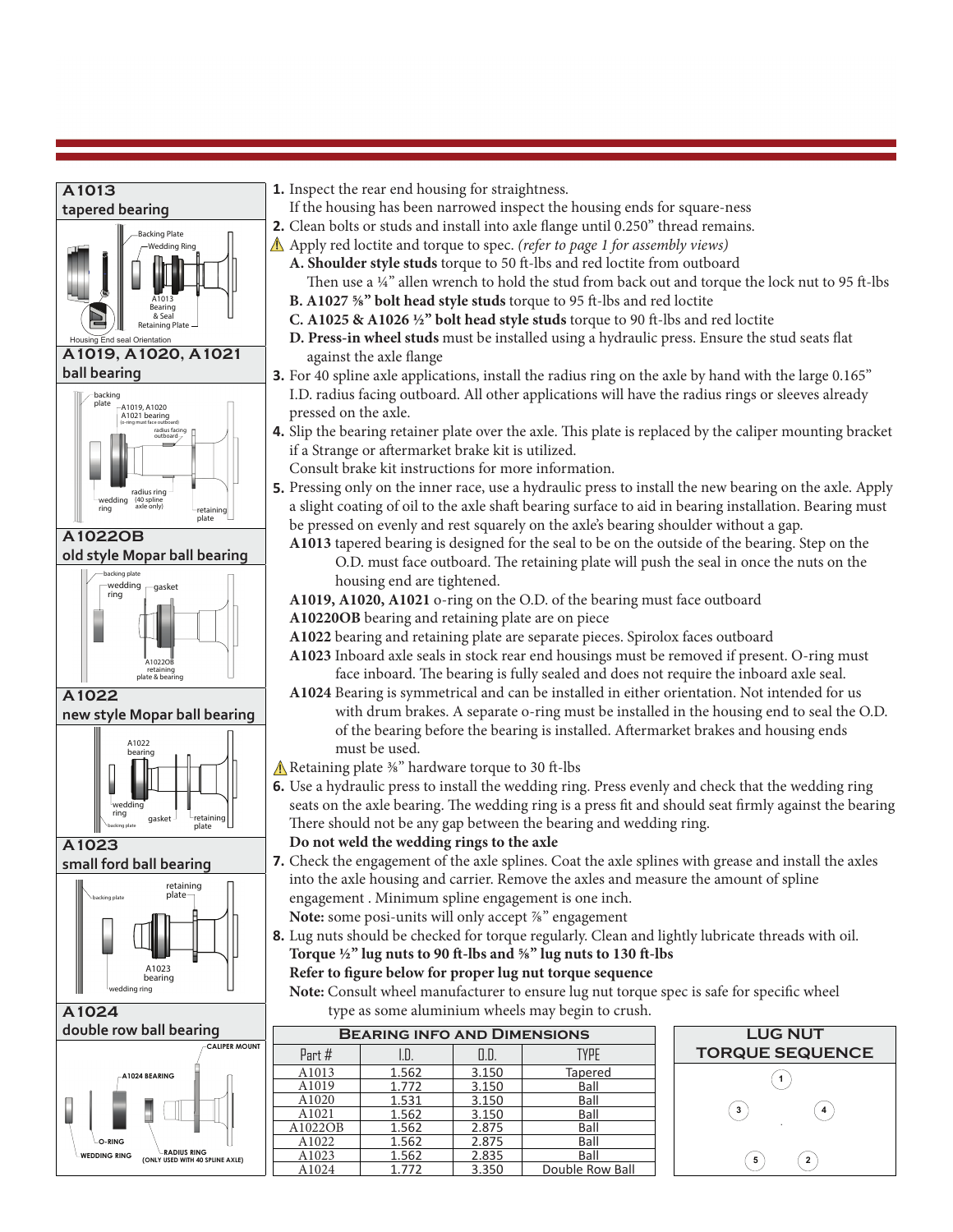

Bearing assembly diagrams, installation instructions, bearing dimensions and lug nut torque sequence. — Axle packets — page 2

Review your request

This request has not been sent. Download it or print it to share with the axle team.

Custom axle configuration · Final specifications subject to fitment review.
